CLOSE-COUPLED WATER CLOSETS
HTCC-MOXIM-8009
Product Name: HTCC-MOXIM-8009
Product Range: CLOSE-COUPLED WATER CLOSETS
Product Overview
Flushing System |
: |
Washdown
|
|
Seat Cover |
: |
PP Soft-Closing (8009)
|
|
HO (P-Trap) (Project Available) |
: |
160/250 mm
|
|
BO (S-Trap) (Project Available) |
: |
BO: S-Trap 250mm
|
|
Flushing Button |
: |
3.8CM (6L/3L)
|
|
Screw |
: |
WC Side Mounting Screw
|
|
Dimension (LxWxH mm) |
: |
700 x 390 x 760
|
|
Carton Packing |
: |
2 Separate Packing 5-Layer
|
|
Fitting Warranty |
: |
2-Years
|
|
Ceramic Warranty |
: |
Lifetime Limited Warranty
|
|

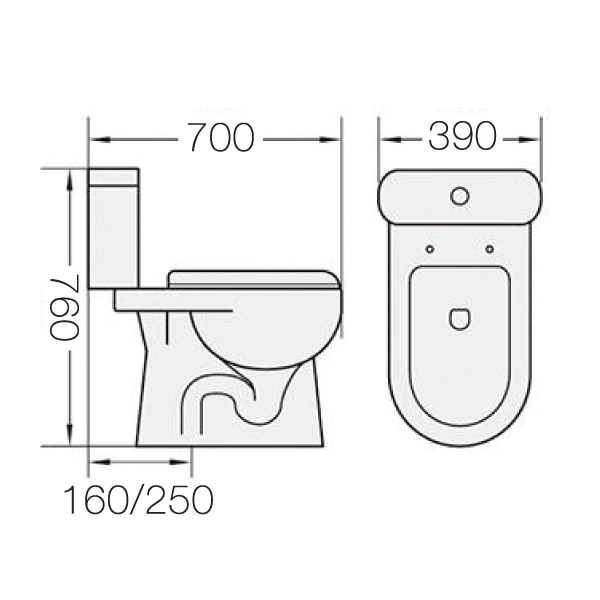

Dimension Diagram 1
Specifications
Flushing System |
: |
Washdown
|
|
Seat Cover |
: |
PP Soft-Closing (8009)
|
|
HO (P-Trap) (Project Available) |
: |
160/250 mm
|
|
BO (S-Trap) (Project Available) |
: |
BO: S-Trap 250mm
|
|
Flushing Button |
: |
3.8CM (6L/3L)
|
|
Screw |
: |
WC Side Mounting Screw
|
|
Dimension (LxWxH mm) |
: |
700 x 390 x 760
|
|
Carton Packing |
: |
2 Separate Packing 5-Layer
|
|
Fitting Warranty |
: |
2-Years
|
|
Ceramic Warranty |
: |
Lifetime Limited Warranty
|
|
There is no manual for this product. |
