CLOSE-COUPLED WATER CLOSETS
HT-COBURG-FX-UF
Product Name: HT-COBURG-FX-UF
Product Range: CLOSE-COUPLED WATER CLOSETS
Product Overview
Flushing System |
: |
Rimless Washdown
|
|
Seat Cover |
: |
High Grade Soft-Closed PP Seat & Cover
|
|
HO (P-Trap) (Project Available) |
: |
HO-P: 180mm, Flexible Trap: 100-280mm
|
|
Flushing Button |
: |
Dual Flush (6L/3L)
|
|
Dimension (LxWxH mm) |
: |
685 x 360 x 765
|
|
Fitting Warranty |
: |
2 Years
|
|
Vitreous China Warranty |
: |
10 Years
|
|

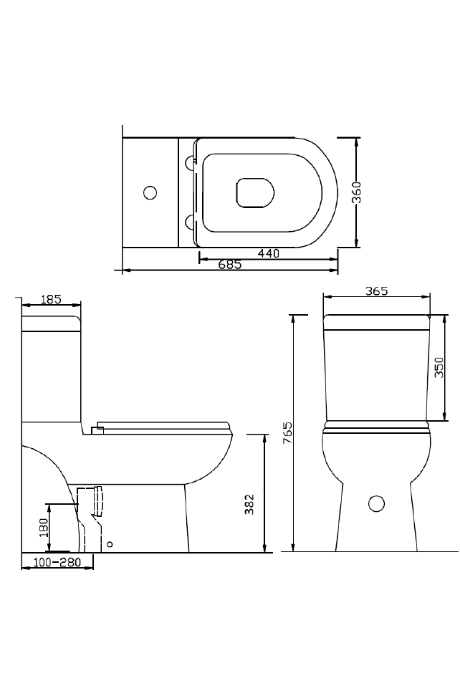

Dimension Diagram 1

Specifications
Flushing System |
: |
Rimless Washdown
|
|
Seat Cover |
: |
High Grade Soft-Closed PP Seat & Cover
|
|
HO (P-Trap) (Project Available) |
: |
HO-P: 180mm, Flexible Trap: 100-280mm
|
|
Flushing Button |
: |
Dual Flush (6L/3L)
|
|
Dimension (LxWxH mm) |
: |
685 x 360 x 765
|
|
Fitting Warranty |
: |
2 Years
|
|
Vitreous China Warranty |
: |
10 Years
|
|
There is no manual for this product. |
